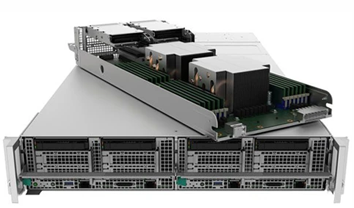

CR2204WK2HAC (4 Sockets, 48DIMMs, 파워 2+1, CLX)(단종-2212)
본문
*) 특징 (Walker Pass Platform)
- 2U 2-Node Platform
- Supports two Intel® 2rd Generation Xeon® Platinum 9200 processors per Node
350 W maximum processor TDP
- 24 DDR4 DIMMs(Max 3TB) per Node
- 2 x 2.5" Hot-plug U.2 Bays per Node
- One(2) Intel 1Gb-T Ethernet Controller per Node
- 2U Rack Multi-node Form Factor
Processor | : (2) Intel 2rd Generation(Cascade Lake) Xeon Platinum 9200 Processors per Node : Max TDP up to 350W |
Chipset | : Intel C621 |
Slots | : (2) PCIe G3 x16 per Node |
Memory Capacity | : 24 DIMM slots supporting up to 3TB per Node : DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 |
| LAN | : (1) Intel 1Gb-T Ethernet Controller per Node |
Onboard Video | : Onboard Aspeed AST2500 |
| I/O Ports | : (2) M.2 SATA/PCIe Connectors per Node : (2) U.2 connectors - NVMe/PCIe per Node, Support VROC RAID : (1) USB3.0 ports (@ front) per Node : (1) I/O breakout cable connector(@ front) per Node(Serial Port, Video Port, 2 USB 2.0 Ports) : (1) 1Gb-T port per Node : (1) dedicated GbE for IPMI per Node |
Drive bays | : (2) 2.5" Hot-swap Tool-less U.2 PCIe SSDs |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 1,600Watts * 3EA (200-240Vac input) PFC / 80 plus Platinum 2+1 Redundant |
Dimensions(H x W x D) | : 86.5mm x 441.8mm x 868mm 2U |
