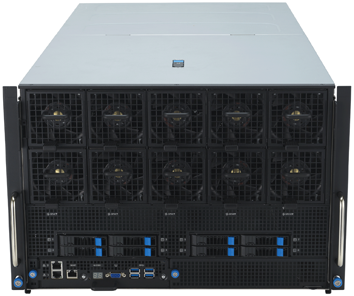

CR7210ESCN8G8(2 Sockets, 8 H100 GPUs SXM5, 7U, SPR/EMR)
본문
*) 특징
- 8 x HGX H100 GPUs 80GB with NVLink
- Supporting up to 2 Intel Xeon 4/5th Gen Scalable Processor
- Two(2) 1/10Gb-T Ethernet Controller
Processor | : (2) Intel 4th(Sapphire Rapids)/5th(Emerald Rapids) Xeon 8400/6400/5400/4400 Processor(Socket-E 4677) : Max TDP up to 350W |
Chipset | : Intel C741 |
Slots | : (8) PCI-E Gen5 x16 slots (HH / HL / SW / LP, PCIe Switch) : (1) PCI-E Gen5 x16 slot (FH / HL, CPU1) : (1) PCI-E Gen5 x16 slot (FH / HL, CPU2) |
Memory Capacity | : 32 DIMM slots supporting up to 12TB(4 DDR5 + 8 Crow Pass) : DDR5 RDIMM/RDIMM 3DS 4800/4400 ECC : Intel Optane DC Persistent Memory Module (DCPMM) |
| LAN | : (2) 10Gb-T ports Intel X710T2 |
GPU | : (1) Onboard Aspeed AST2600 64MB : (8) HGX H100 GPUs 80GB with NVLink NV Switch |
| I/O Ports | : (2) M.2/NVMe PCIe5 x4(CPU1) : (2) M.2/NVMe PCIe3 x4(PCH) : (2) SATA3 6Gb by PCH : (4) USB3.2 G1 ports (@ front) : (1) D-Sub 15-pin port (@ front) : (2) 10GbE ports, (1) dedicated GbE for IPMI ( @ front) |
Drive bays | : (8) 2.5" Hot-swap, NVMe(PCIe Switch) : (2) 2.5" Hot-swap, NVMe(CPU2)/SATA/SAS* * SAS support required an HBA/RAID card |
Management | : IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
Power Supply | : 12,000Watts(3000W*6) (200-240Vac input) PFC / 80 plus Titanium 4+2 Redundant |
Dimensions(H x W x D) | : H306.65mm x W447mm x D885mm (30.3”) 7U |
