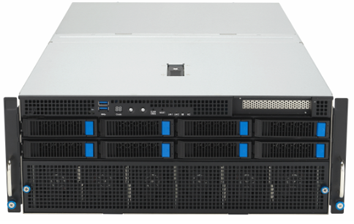

CR4308ESC8K(2 Sockets, 8 GPUs PCIe5, 4U, SPR/EMR)
본문
*) 특징
- Supporting up to 8 GPUs PCIe5
- Supporting up to 2 Intel Xeon 4/5th Gen Scalable Processor
- Two(2) 1/10Gb-T Ethernet Controller
Processor | : (2) Intel 4th(Sapphire Rapids)/5th(Emerald Rapids) Xeon 8400/6400/5400/4400 Processor(Socket-E 4677) : Max TDP up to 350W |
Chipset | : Intel C741 |
Slots | : (8) PCI-E Gen5 x16 slots (FH / FL / DW) for GPU : (1) PCI-E Gen5 x8 slot (LP / HL) for HBA/RAID : (1) PCI-E Gen5 x16 slot (FH / FL) for NIC : (1) PCI-E Gen5 x8 slot (LP / FL) for NIC or OCP |
Memory Capacity | : 32 DIMM slots supporting up to 12TB(4 DDR5 + 8 Crow Pass) : DDR5 RDIMM/RDIMM 3DS 4800/4400 ECC : Intel Optane DC Persistent Memory Module (DCPMM) |
| LAN | : (2) 10Gb-T ports Intel X710T2 |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (1) M.2/NVMe PCIe3 x4 : (8) SATA3 6Gb by miniSAS-HD : (2) USB3.2 G1 ports (@ front) : (1) DB-9 COM port (@ rear) : (1) D-Sub 15-pin port (@ rear) : (2) 10GbE ports, (1) dedicated GbE for IPMI ( @ rear) |
Drive bays | : (8) 3.5" Hot-swap, NVMe/SATA/SAS* |
Management | : IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
Power Supply | : 6,000Watts(3000W*3) (200-240Vac input) PFC / 80 plus Platinum 2+1 Redundant |
Dimensions(H x W x D) | : 174.5mm x W440mm x D800mm (30.3”) 4U |
