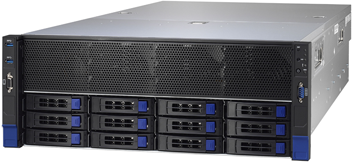

CR4312G4GPU10(2 Sockets, 10 GPUs PCIe4, 4U, ICX)
본문
*) 특징
- Single/Dual-Root CPU-GPU Link Topology
- Supporting up to 10 GPUs(PCIe4)
- Supporting up to 2 Intel Xeon 3rd Gen Scalable Processor
- 10Gb-T Ethernet Controller
Processor | : (2) Intel Xeon 3rd(Ice lake) Scalable Processor Family(Socket-P4 4189) : Max TDP up to 270W |
Chipset | : Intel C621 : Switch IC PLX PEX88096 |
Slots | : (10) PCI-E Gen4 x16 slots (FH / 10.5"L / DW) / (1) PCI-E Gen4 x16 slot (FH / 10.5"L / SW) : Supporting up to 10GPUs : CPU-GPU Link Topology - Single/Dual-Root |
Memory Capacity | : 32 DIMM slots supporting up to 6TB : DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200/2933/2666 / DDR4 JEDEC NVDIMM 2666 / : Intel Optane DC Persistent Memory Module (DCPMM) |
| LAN | : (2) 10Gb-T ports Intel X710T2 |
Onboard Video | : Onboard Aspeed AST2600 |
| I/O Ports | : (2) USB3.0 ports (@ rear) / (2) USB3.0 ports (@ front) : (1) DB-9 COM port (@ front) : (1) D-Sub 15-pin port (@ front) : (2) 10GbE ports, (1) dedicated GbE for IPMI |
Drive bays | : (12) 3.5" Hot-swap, Tool-less SSD/HDDs |
Management | : IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
Power Supply | : 4,800Watts (200-240Vac input) PFC / 80 plus Platinum 3+1 Redundant |
Dimensions(H x W x D) | : 176mm x W438mm x D770mm (30.3”) 4U |
