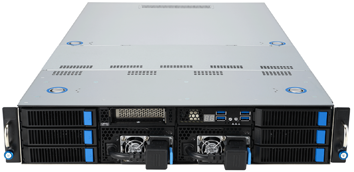

CR2306ESC4K(2 Sockets, 16 DIMMs, 4 GPUs PCIe5, SPR/EMR)
본문
*) 특징
- Supports two Intel® 4/5th Generation Xeon® Scalable processor family,350W maximum processor TDP
- Up to 16 DDR5 DIMMs, up to 4 TB total memory(dependent on memory type)
- 12 x 3.5" Hot-plug Bays
- Two(2) Intel i350 1Gb-T Ethernet Controller
- 2U Rack Form Factor
Processor | : (2) Intel 4th(Sapphire Rapids)/5th(Emerald Rapids) Xeon 8400/6400/5400/4400 Processor(Socket-E 4677) : Max TDP up to 350W |
Chipset | : Intel C741 |
Slots | : (4) PCIe G5 x16 FHFLDS for GPU : (2) PCIe G5 x16 FHHL |
Memory Capacity | : 16 DIMM slots supporting up to 4TB : DDR5 REG ECC RDIMM/3DS-RDIMM/9x4-RDIMM 4800 |
| LAN | : (2) Intel i350 1Gb-T Ethernet Controller |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (1) M.2 connectors - PCIe3 x4, up to 2280 : (6) MCIO/PCIe : (2) SATA3 6Gb/s : (4) USB3.2 G1 ports (@ front) : (2) USB3.2 G1 ports (@ rear) : (1) D-Sub 15-pin port (@ rear) : (2) 1Gb-T ports, (1) dedicated GbE for IPMI (@ rear) |
Drive bays | : (2) 2.5" Hot-swap, Tool-less SATA/SAS*/NVMe SSD/HDDs : (2) 3.5" Hot-swap, Tool-less SATA/SAS*/NVMe SSD/HDDs : (2) 3.5" Hot-swap, Tool-less SATA/SAS* HDDs |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 2600Watts (200-240Vac input) PFC / 80 plus Titanium 1+1 Redundant |
Dimensions(H x W x D) | : 88.9mm x 439.5mm x 800mm 2U |
