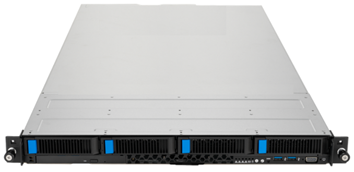

CR1304RS700(2 Sockets, 32DIMMs, 선택적 파워 이중화, SPR/EMR)
본문
*) 특징
- Supports two Intel® 4/5th Generation Xeon® Scalable processor family,350W maximum processor TDP
- Up to 32 DDR5 DIMMs, up to 12 TB total memory(dependent on memory type)
- Two(2) Intel 1/10Gb-T Ethernet Controller
- 1U Rack Form Factor
Processor | : (2) Intel 4th(Sapphire Rapids)/5th(Emerald Rapids) Xeon 8400/6400/5400/4400 Processor(Socket-E 4677) : Max TDP up to 350W |
Chipset | : Intel C741 |
Slots | : (1) PCIe G5 x16 FHFL, (1) PCIe G5 x8 LP(Internal), (1) PCIe G5 x16 LP |
Memory Capacity | : 32 DIMM slots supporting up to 12TB : DDR5 REG ECC RDIMM/3DS-RDIMM/9x4-RDIMM 4400/4800 : Intel Optane PMem 300 series |
| LAN | : (2) Intel X710 10Gb-T Ethernet Controller |
Onboard Video | : Onboard Aspeed AST2600 64MB |
| I/O Ports | : (2) M.2 connectors - SATA 6Gbs & PCIe4 x8 : (12) SATA 6Gb/s : (2) USB3.2 G1 ports (@ Rear) / (2) USB3.2 G1 ports (@ Front) : (2) D-Sub 15-pin port (@ rear & front) : (2) 10GbE ports, (1) dedicated GbE for IPMI |
Drive bays | : (4) 3.5/2.5" Hot-swap, Tool-less SAS/SATA/NVMe(optional) SSD/HDDs |
Management | : IPMI 2.0 compliant baseboard management controller |
Power Supply | : 1600Watts (200-240Vac input) PFC / 80 plus Platinum 1+0 Redundant |
Dimensions(H x W x D) | : 44mm x 439.5mm x 842.5mm 1U |
